Project Completed: 2014 | Location: Beverley

Below Ground Pipe System

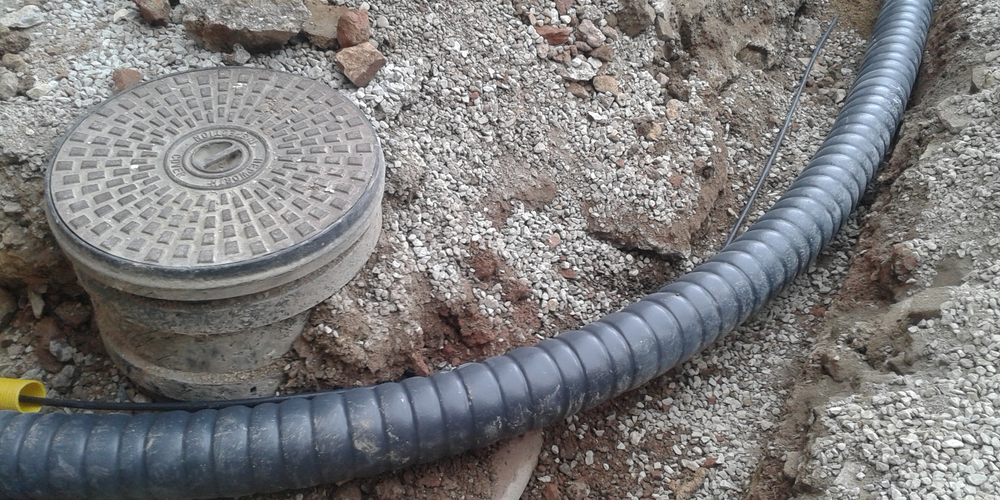

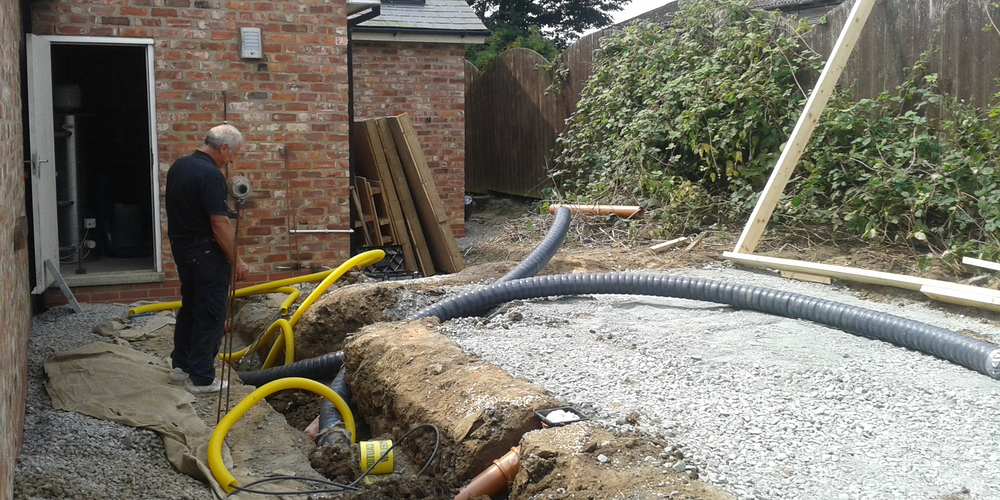

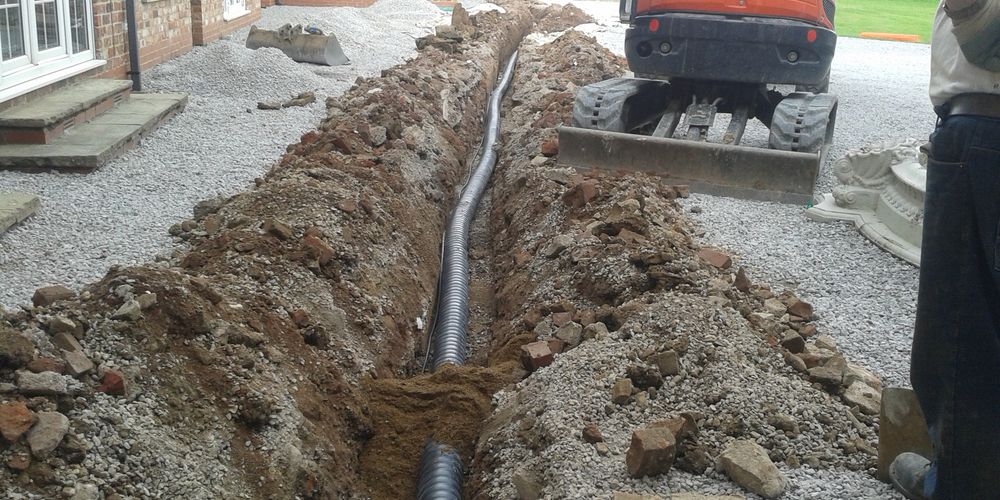

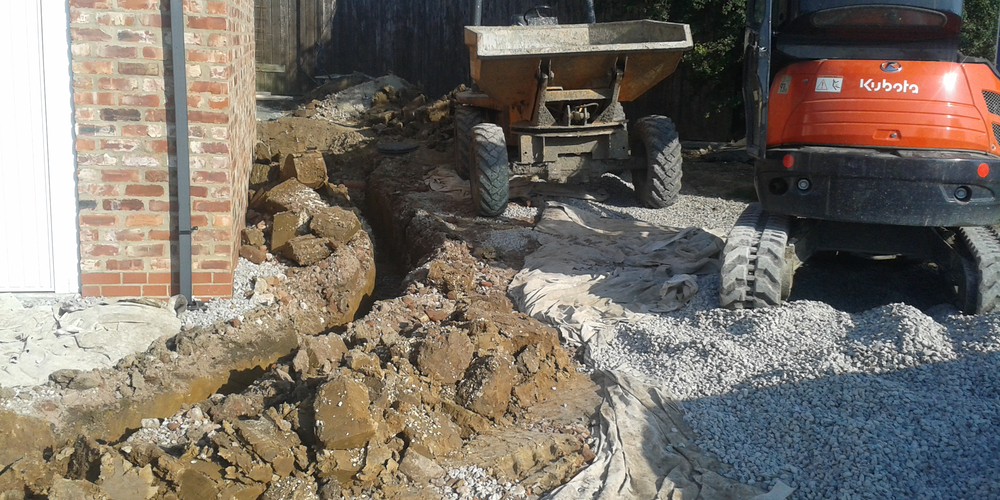

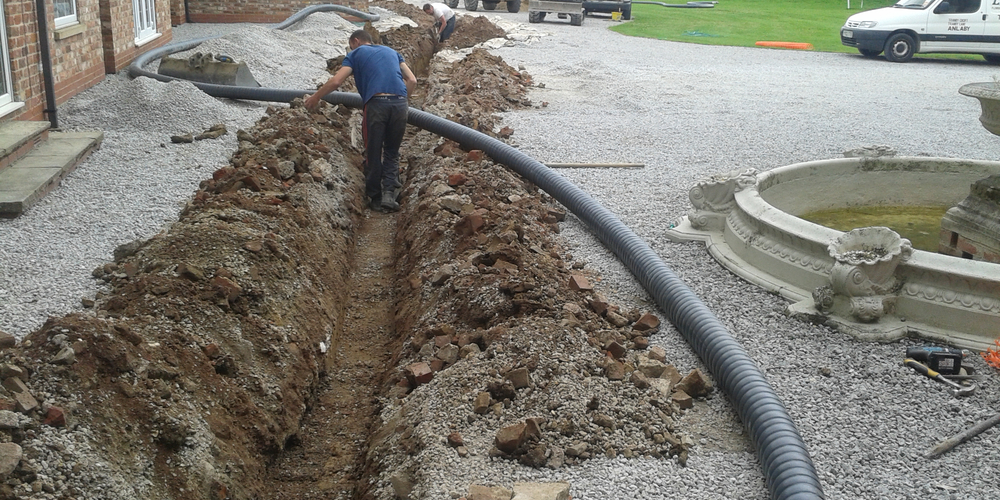

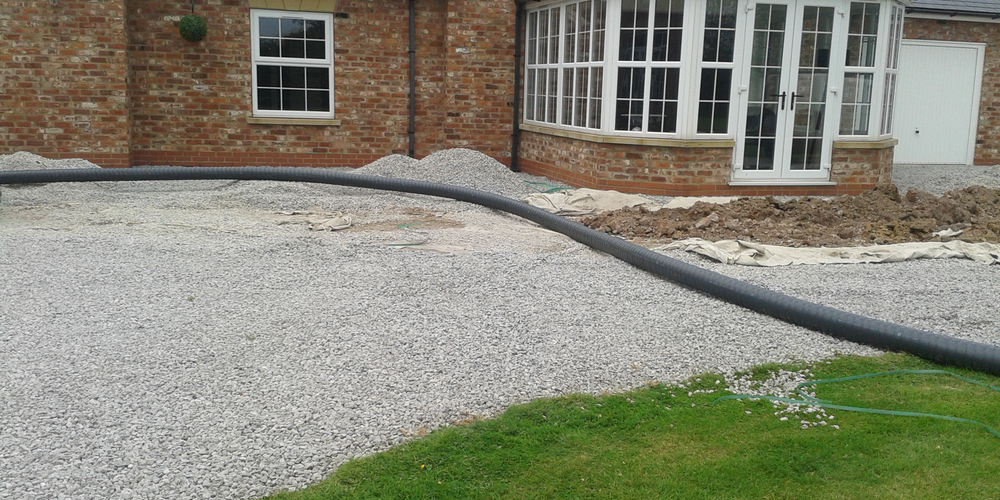

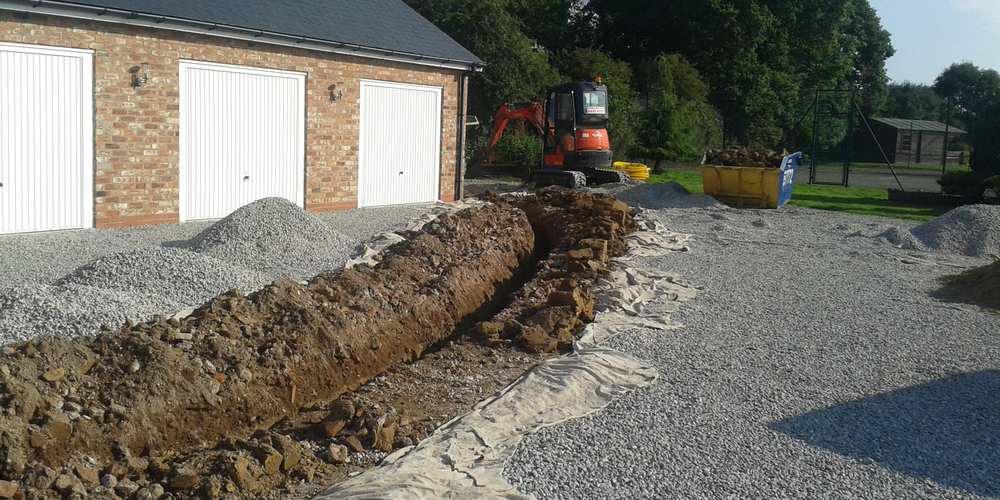

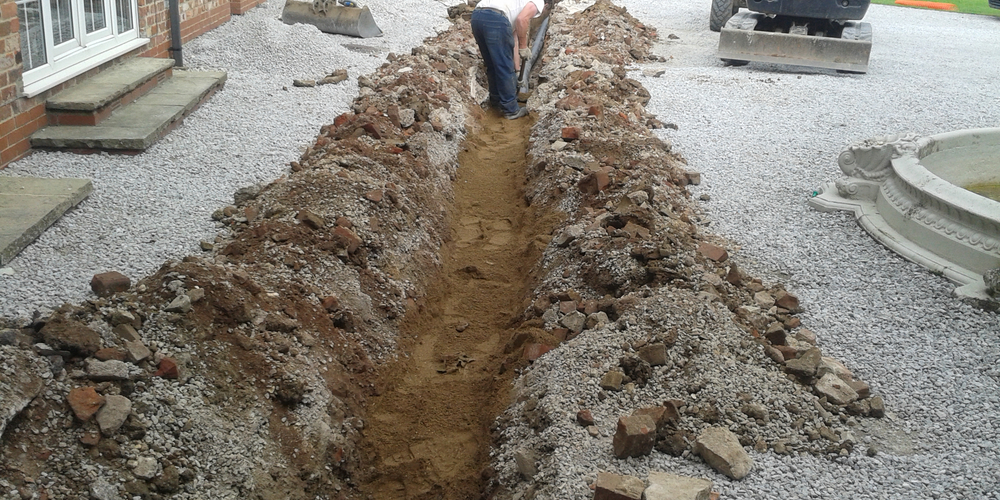

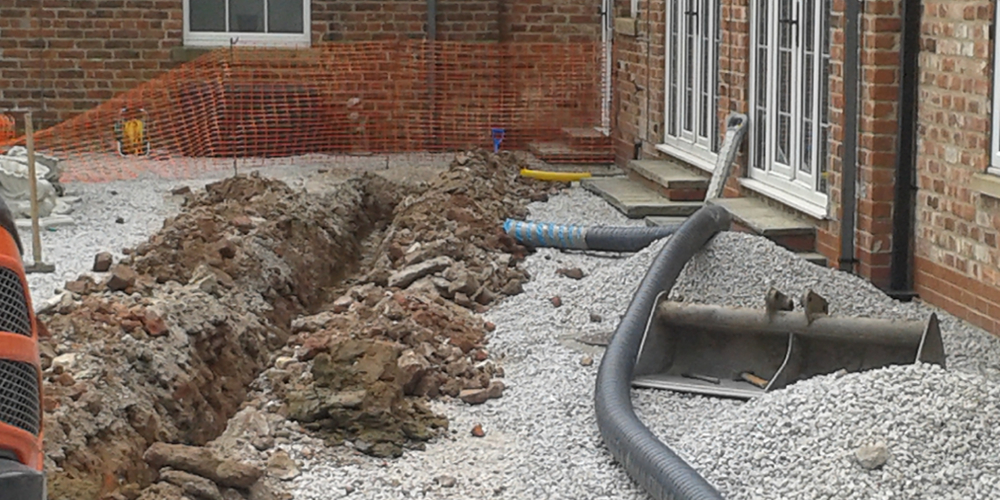

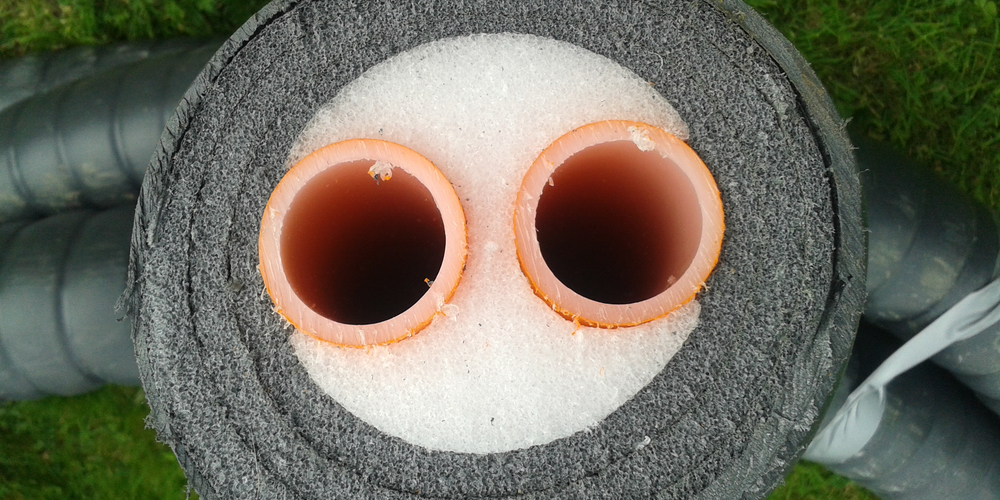

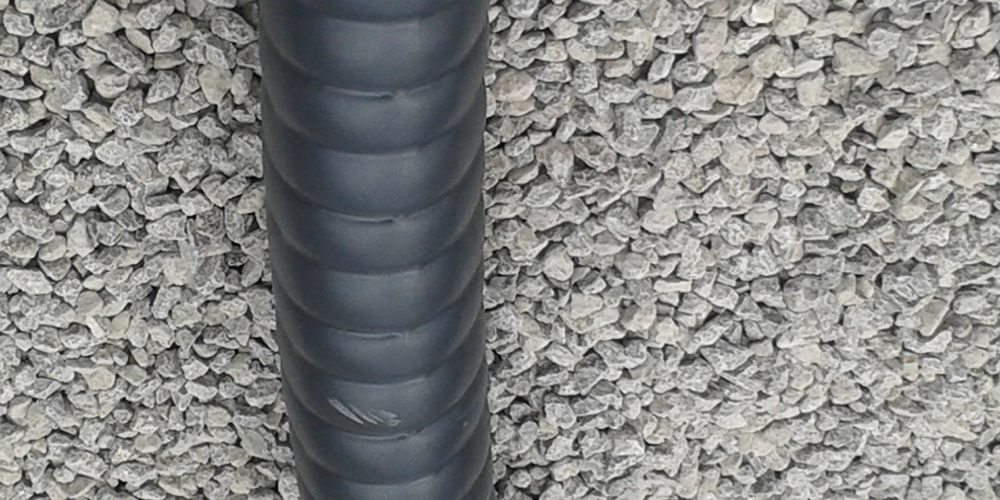

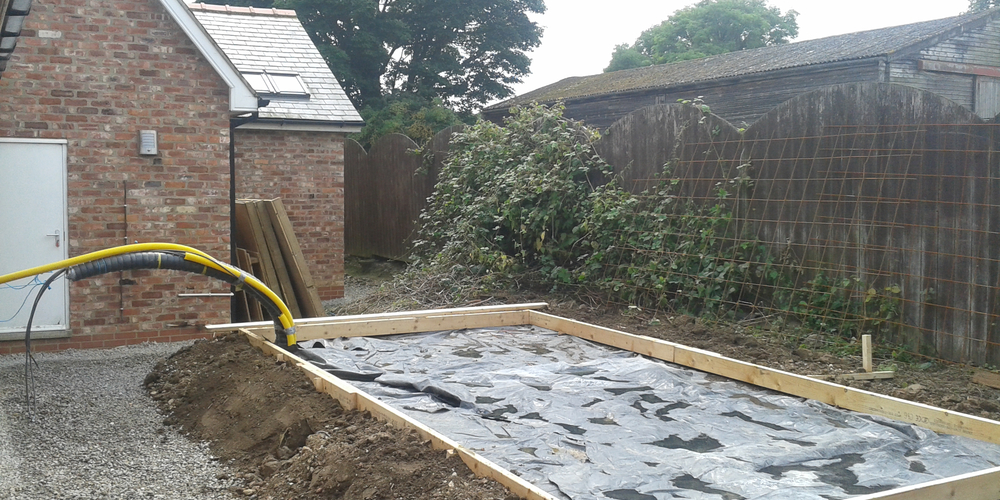

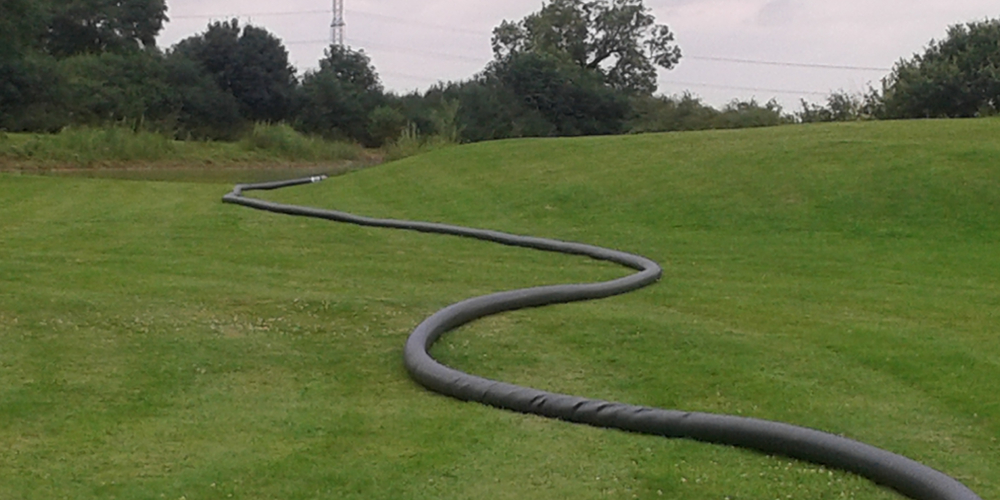

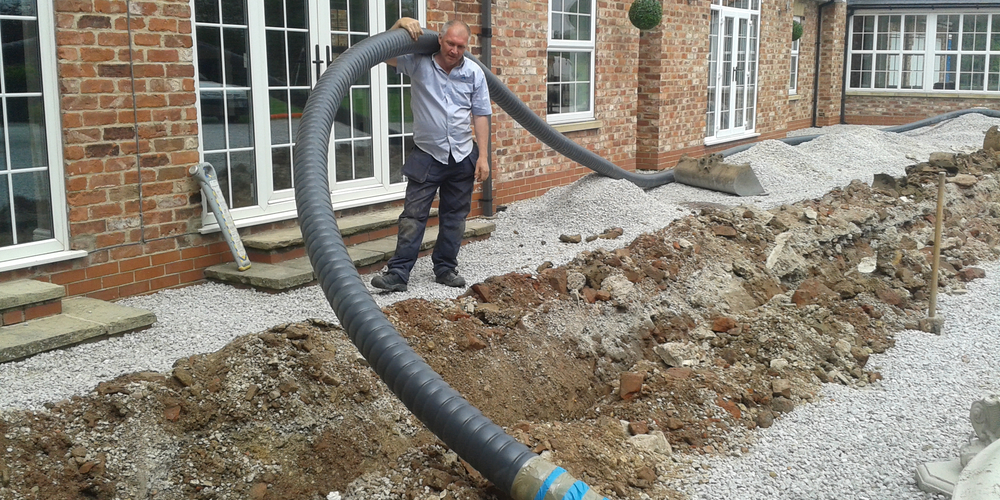

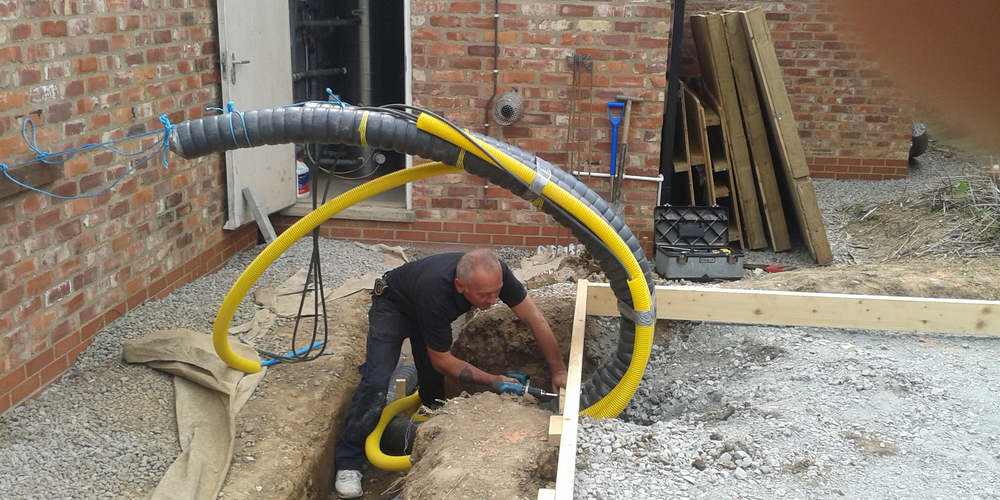

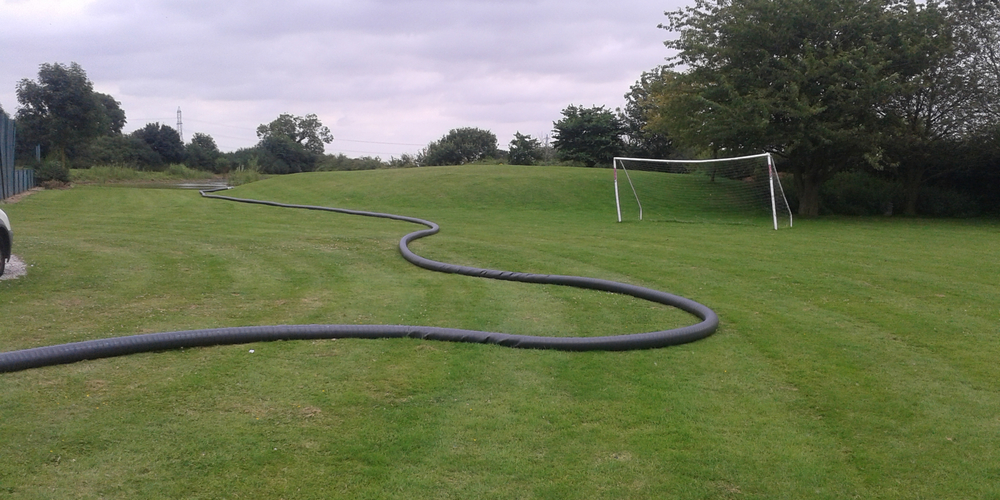

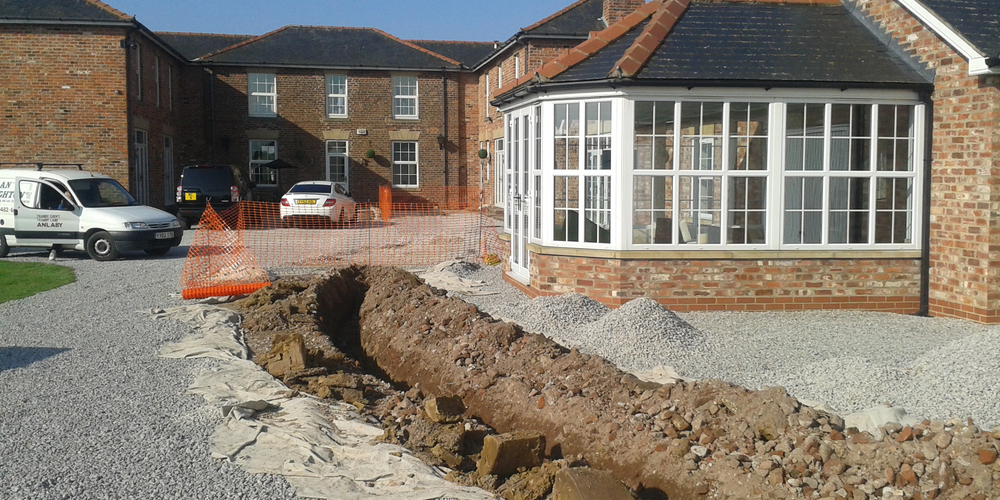

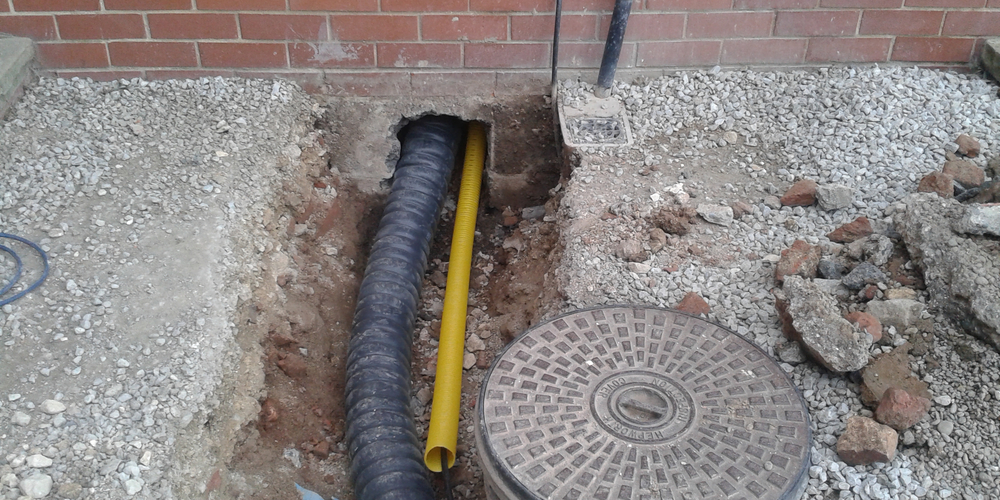

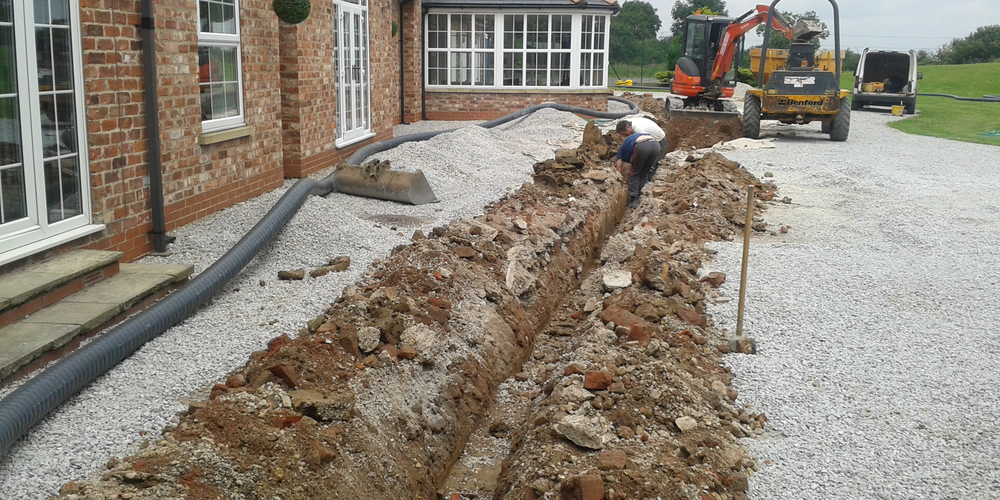

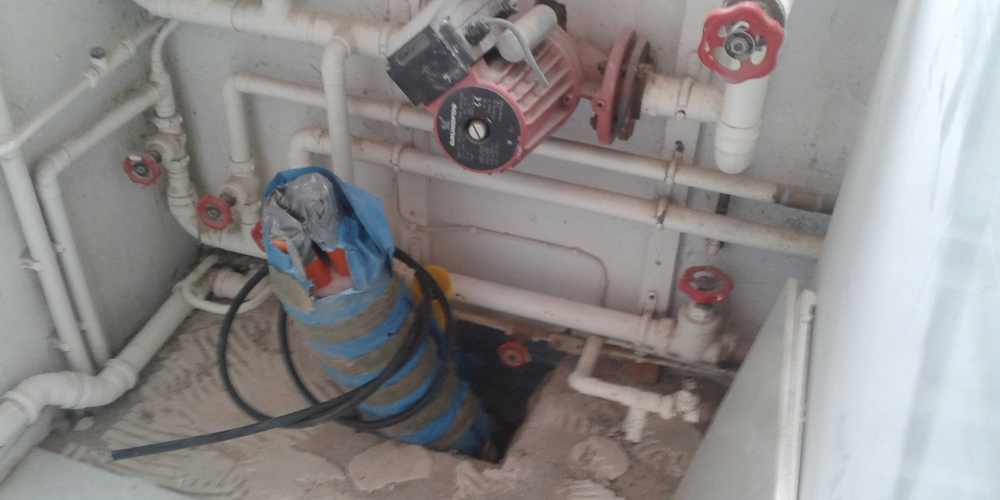

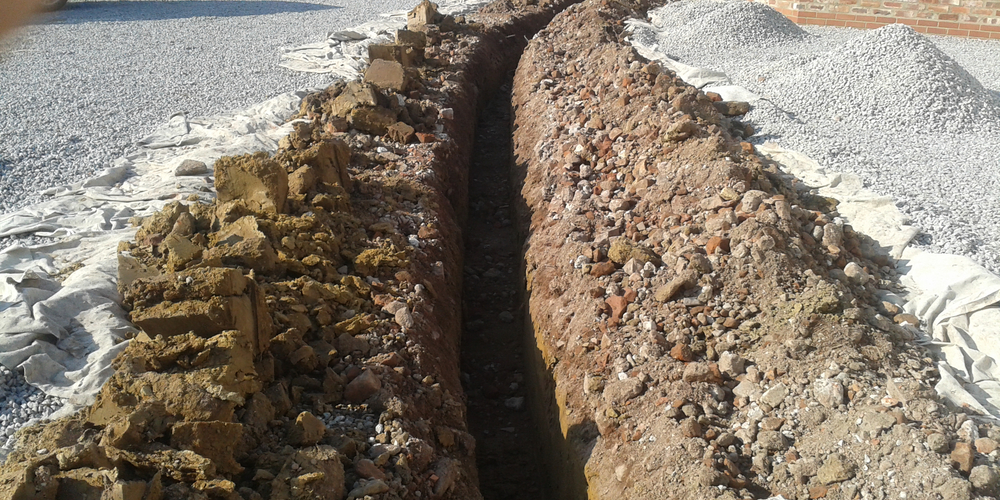

This below ground pipe system is beinging installed for a new Biomass heating system what will replace two very old oil boilers. The new heating system involves the construction of a new boiler house that will become the Biomass plant room. The pre-insulated PEX pipe will feed the property with a new heating (flow & Return Circuit) This type of pipe system is designed where low heat losses are critical. 90m of pre-insulated pipe was installed for this Biomass Installation by Leighton's

(very nice job when sunny..!)

×
